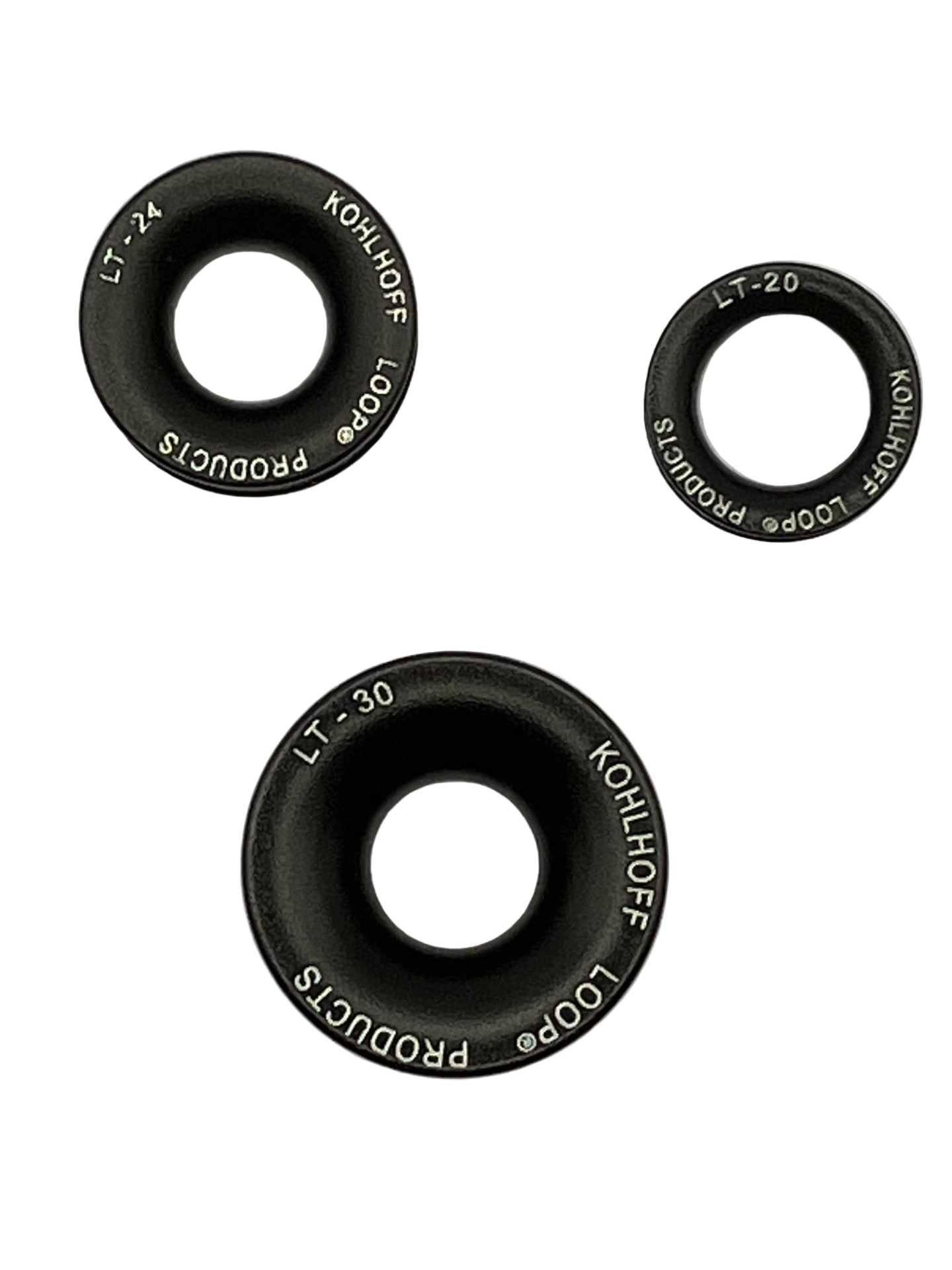

  • Kohlhoff aluminium loop thimbles in three sizes - 20A, 24A, and 30A for marine rigging
  • aluminium-thimbles-three-sizes-comparison.jpg
  • Kohlhoff aluminium loop thimbles in three sizes - 20A, 24A, and 30A for marine rigging video
  • Aluminium thimble spliced into sailing control line showing practical application
  • Technical dimensions for 24A aluminium thimble - 24mm diameter, 11mm bore, 11mm depth
  • Technical dimensions for 30A aluminium thimble - 30mm diameter, 12mm bore, 13.5mm depth

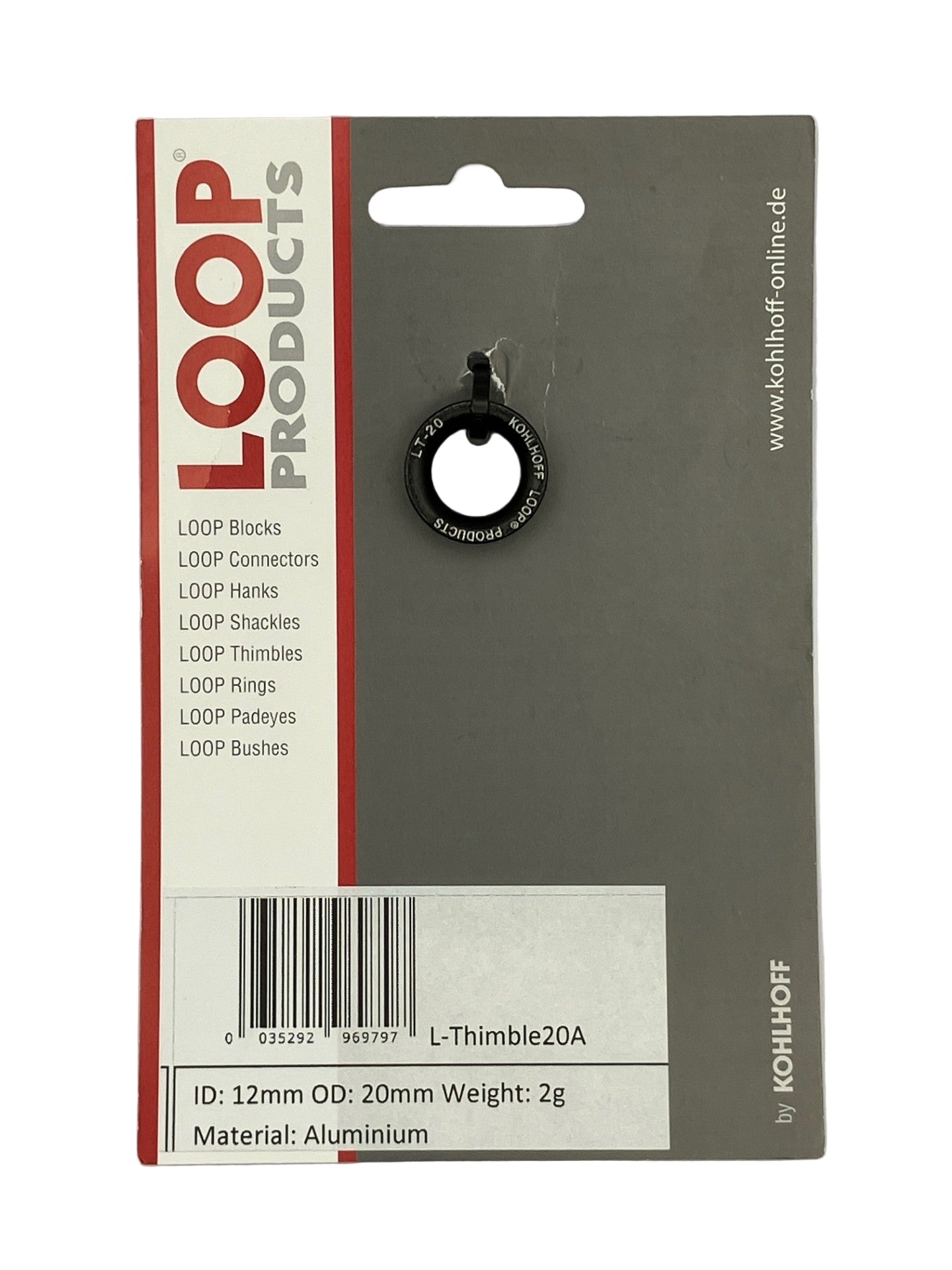

  • Kohlhoff 20A aluminium thimble on retail packaging card

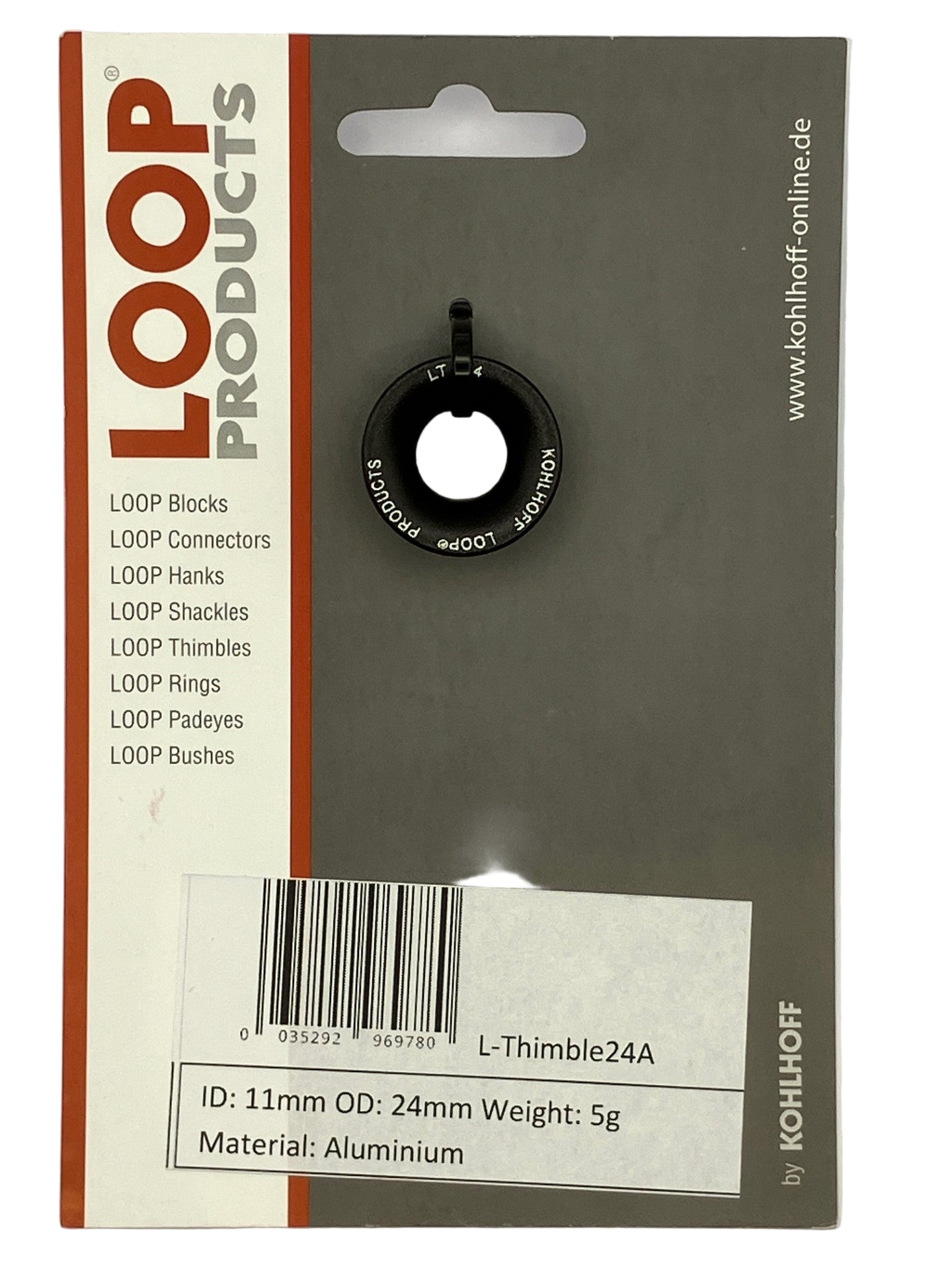

  • Kohlhoff 24A aluminium thimble on retail packaging card

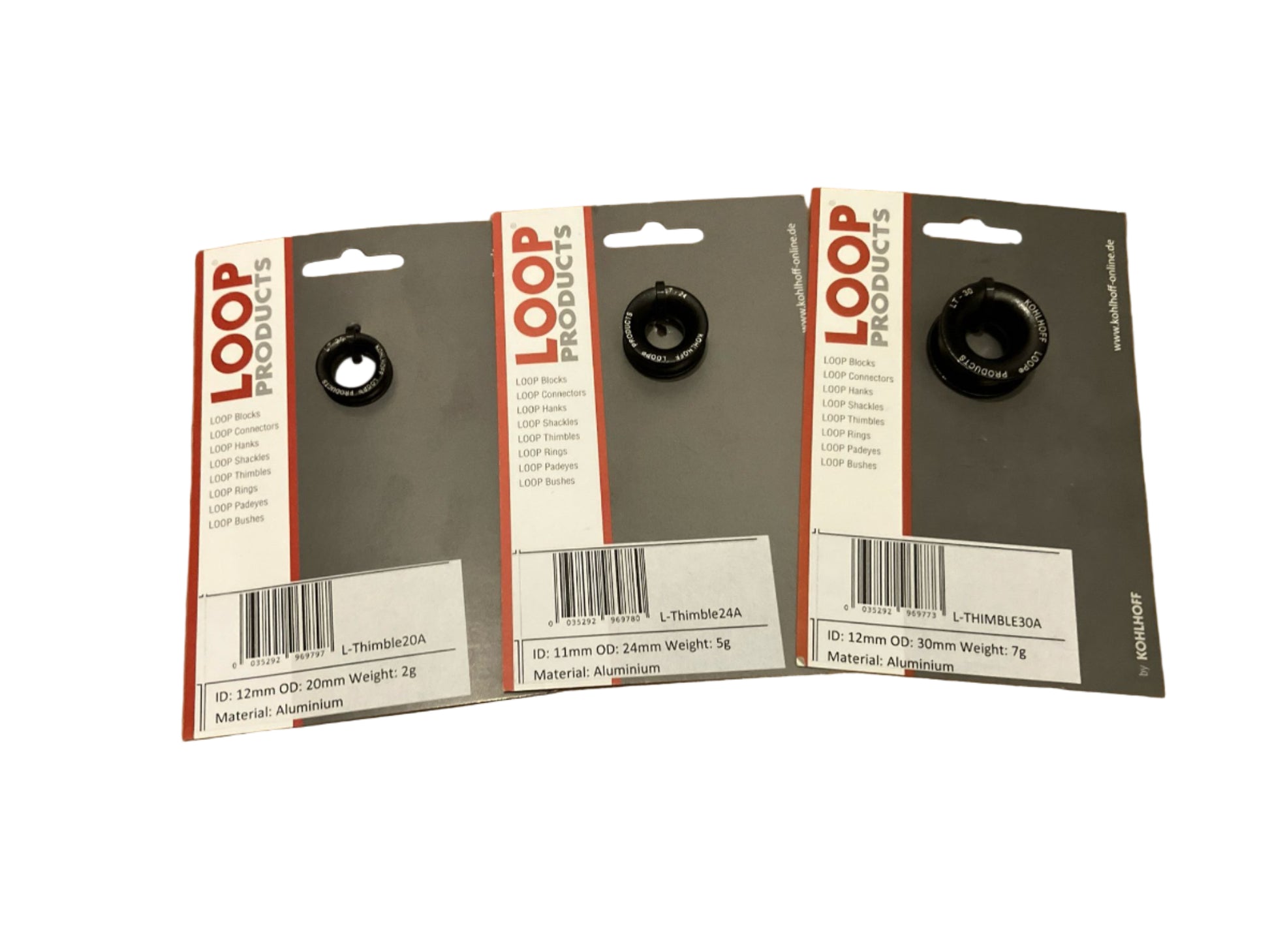

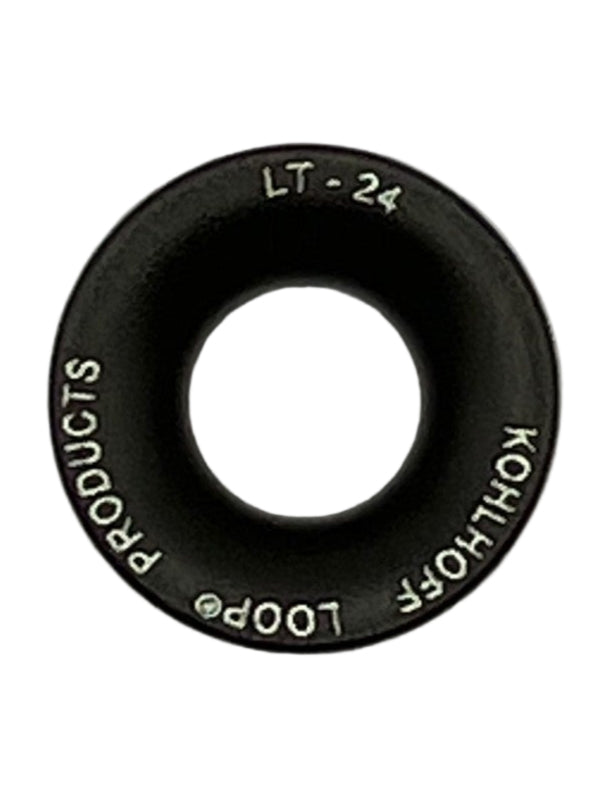

  • Kohlhoff aluminium loop thimble product detail view

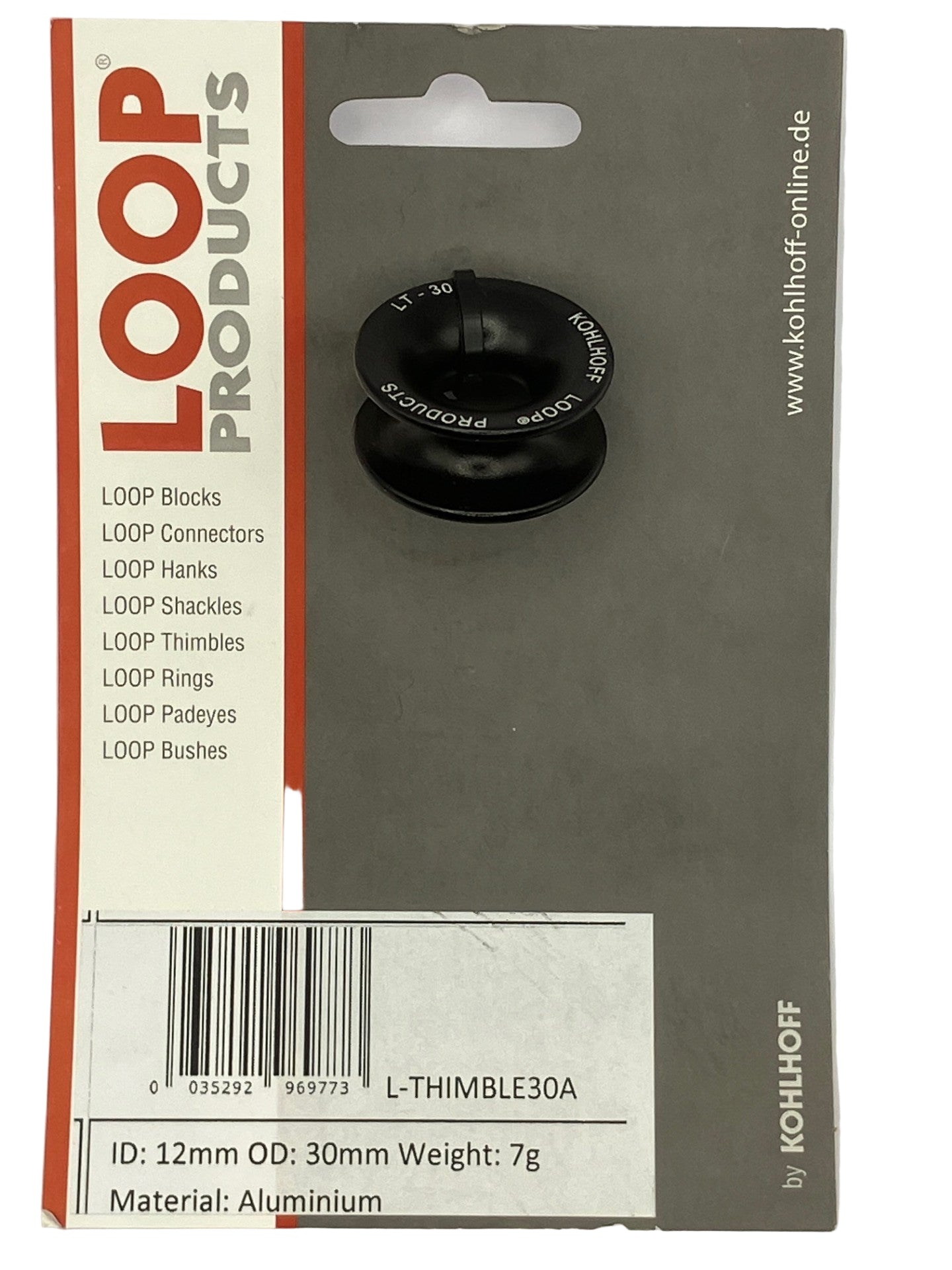

  • Kohlhoff 30A aluminium thimble on retail packaging card

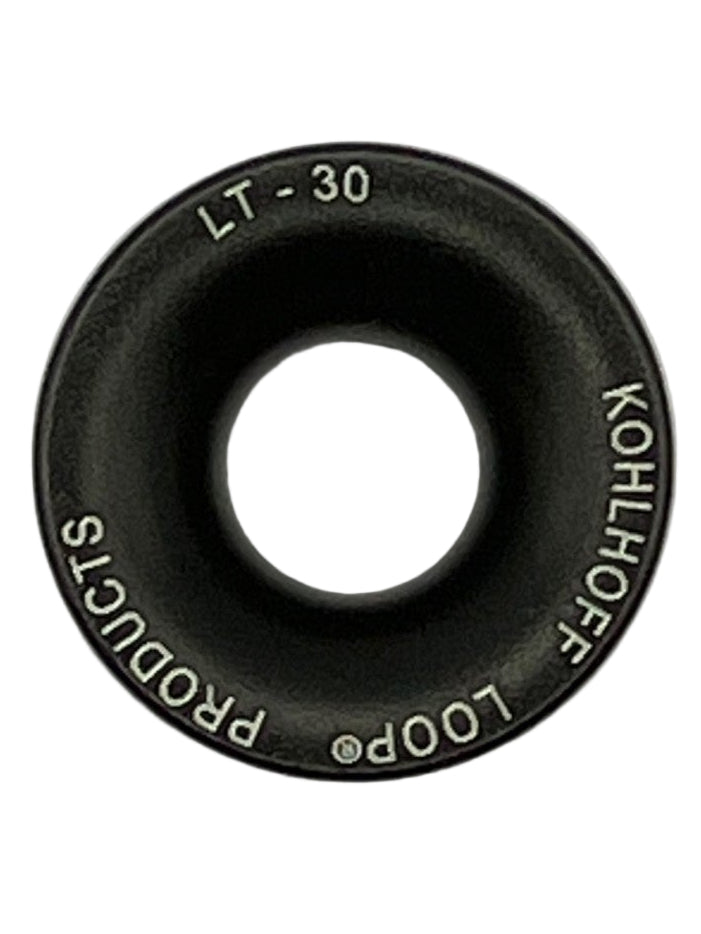

  • Kohlhoff 30A aluminium thimble - 30mm diameter, 1750kg MWL

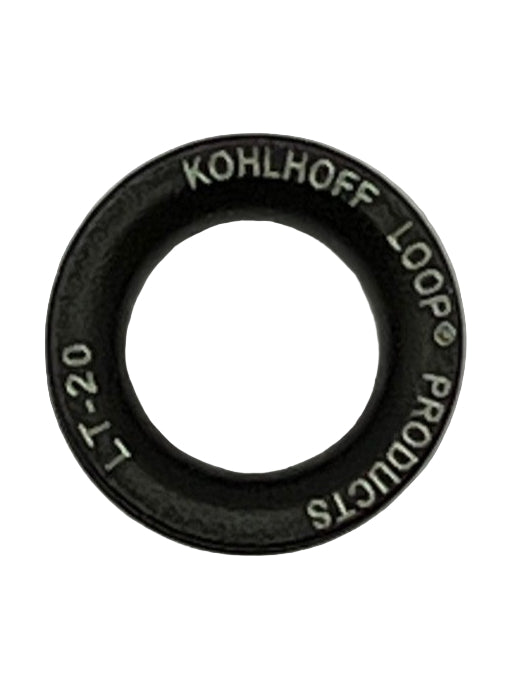

  • Kohlhoff 20A aluminium thimble - 20mm diameter, 150kg MWL
  • Side view of 20A aluminium thimble showing 7mm depth
1 14

Rill Marine Ltd

Aluminium Thimble (Low Friction Ring or High Load Eye)

Aluminium Thimble (Low Friction Ring or High Load Eye)

£10.99 GBP
£10.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Size

Kohlhoff Loop Aluminium Thimble, High Load Eye or Low Friction Rings

Available in 3 sizes

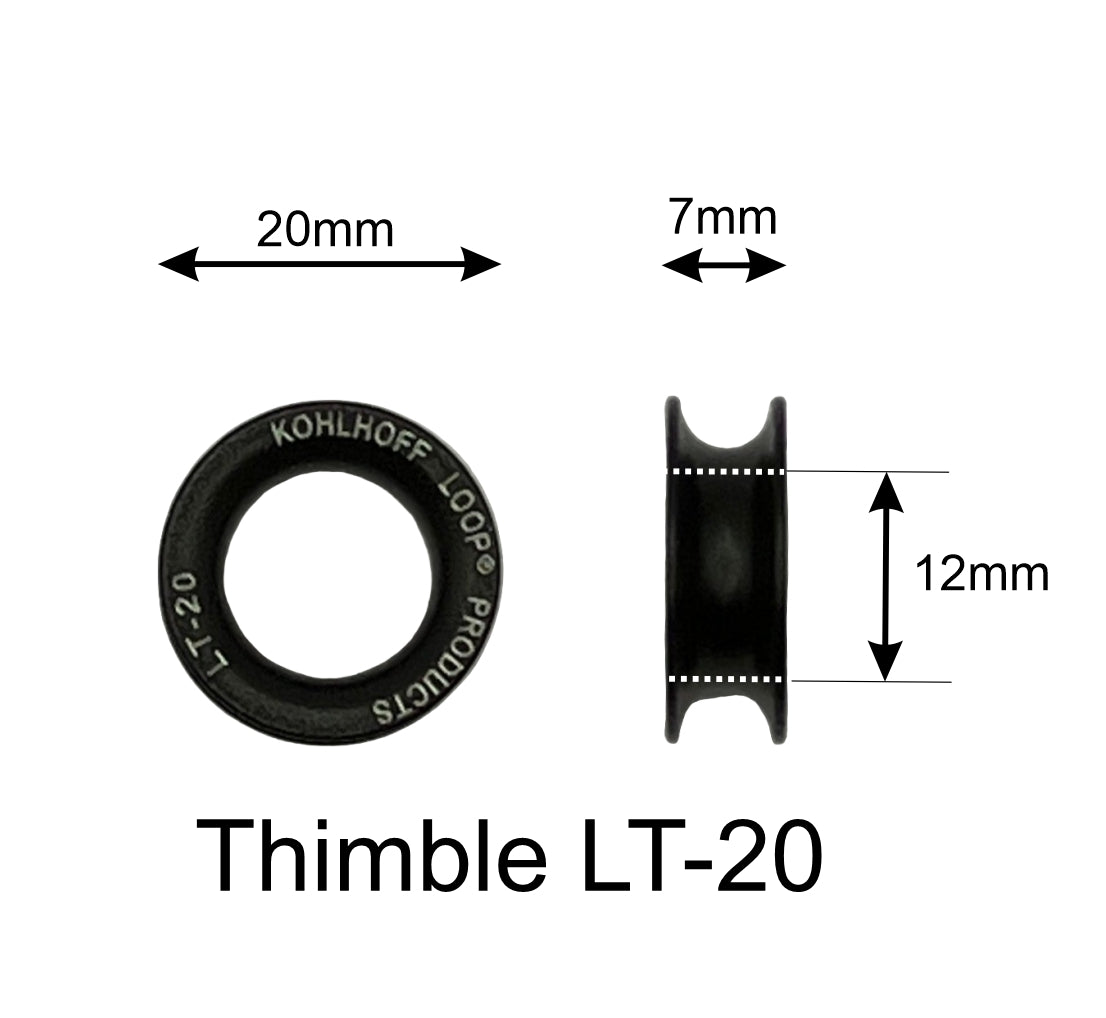

20A Overall dia 20mm - Bore 12mm - Depth 7mm - Max rope size 6mm - weight 2gms - MWL 150kgs

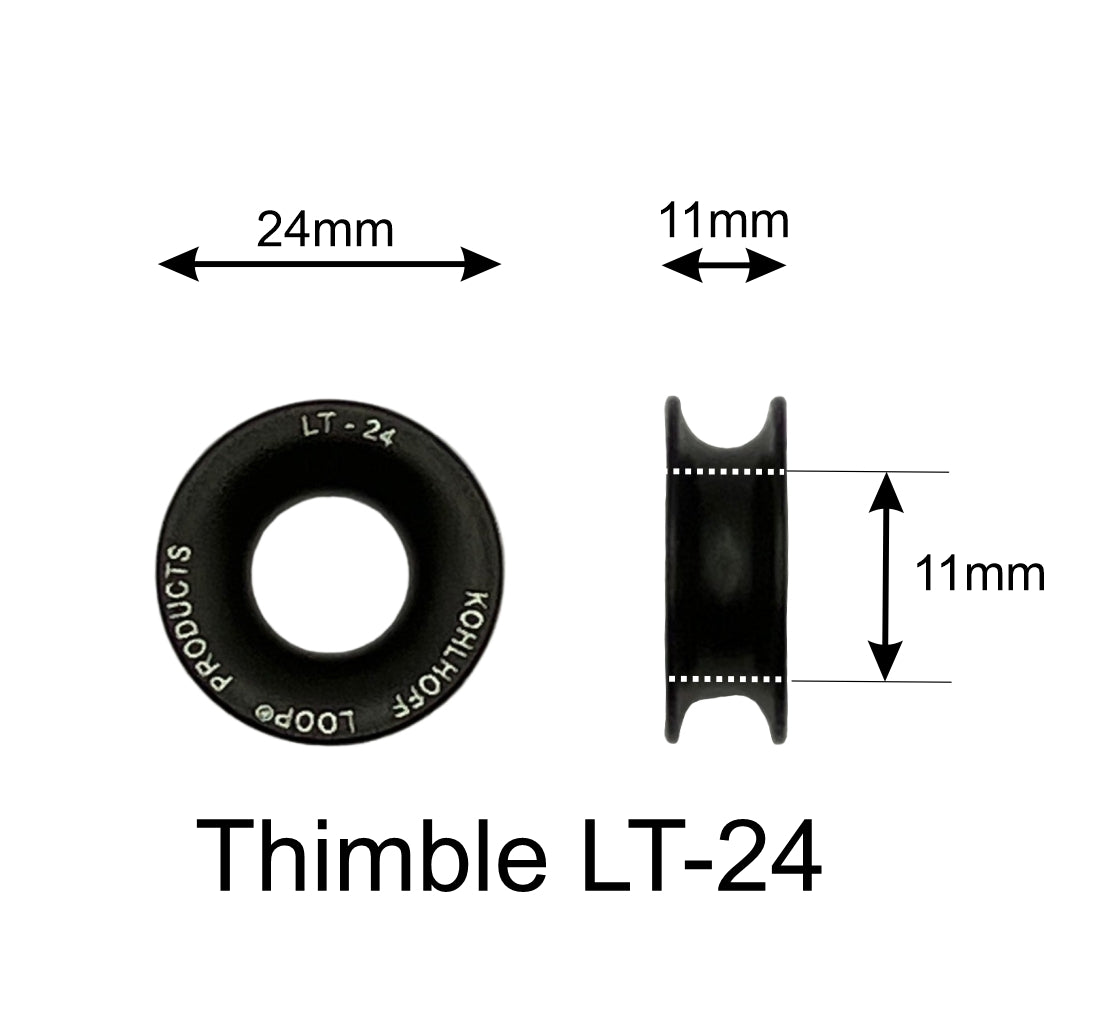

24A Overall dia 24mm - Bore 11mm - Depth 11mm - Max rope size 8mm - weight 5gms - MWL 1150kgs

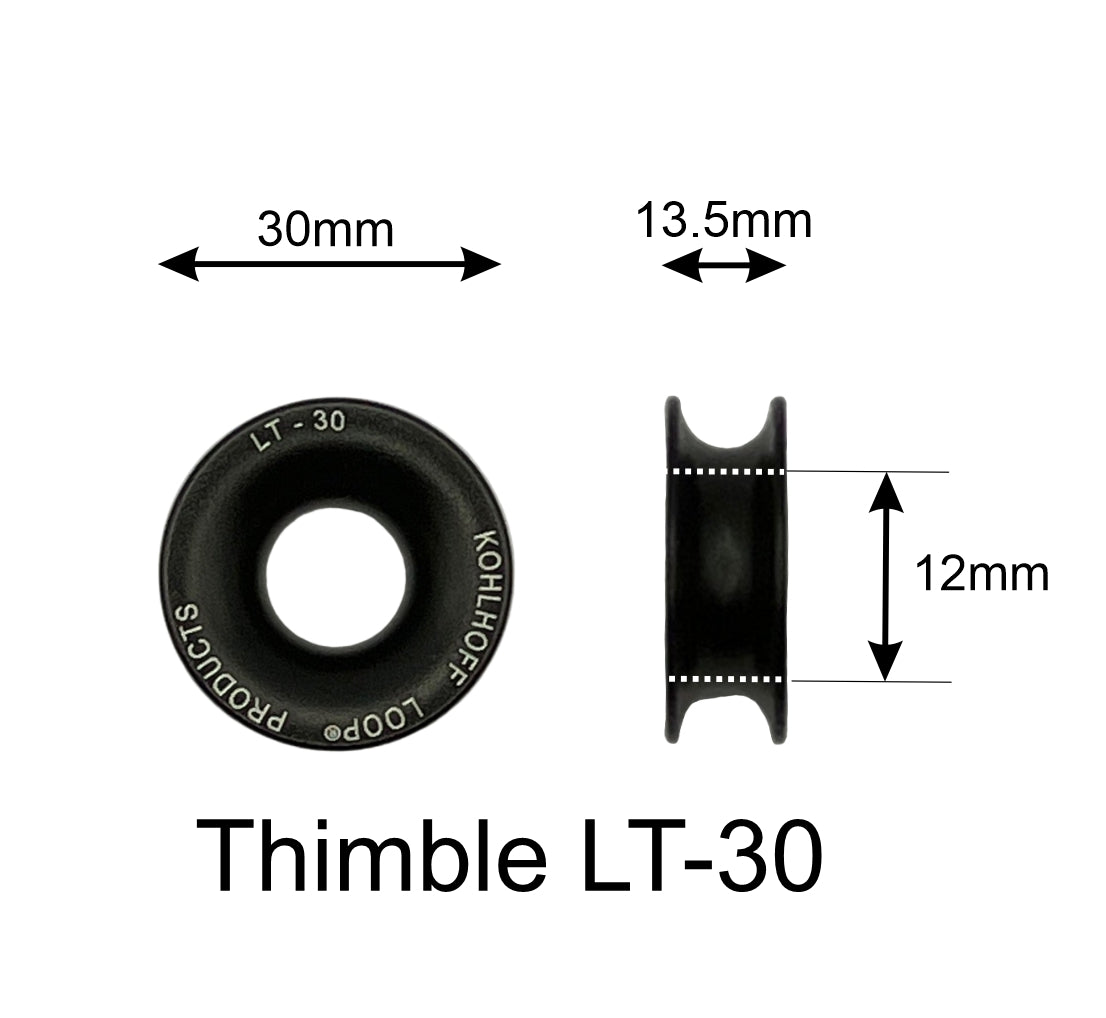

30A Overall dia 30mm - Bore 12mm - Depth 13.5mm - Max rope size 10mm - weight 7gms - MWL 1750kgs

Loop thimbles are simple thimbles that can be spliced into control lines. They are used to deflect sheets or control lines and for lashings. The thimble is made from high strength alloy.
